Self-clinching nuts for stainless steel and other sheet metals

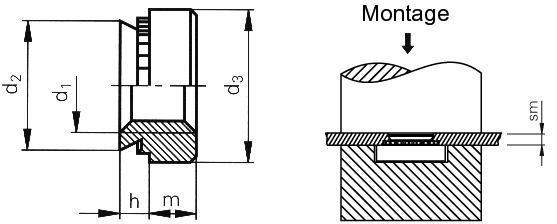

Thread d₁

M5

Min. sm

1.0 mm

Hole-Ø in the sheet
+0.08
  0

6.40 mm

Material

Precipitation grade hardening stainless steel.

Use

Special nut suitable for sheet applications up to a sheet hardness of HRB 90.

3D-Data available

Download

Order description

SP-M5-1

Max. d₂

6.38 mm

d₃ ±0.25

8.64 mm

m ±0.25

2.00 mm

Max. h

0.97 mm

Min. edge distance up to the hole centre

7.1 mm
