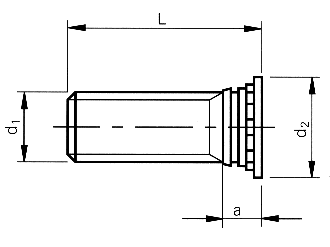

Self-clinching flush head studs

Thread d₁

M6

Min. sm

1.6 mm

L ±0.4

20 mm

Hole-Ø in the sheet
+0.08
  0

6.0 mm

Material

Grade 8.8 through-hardened zinc-plated carbon steel.

3D-Data available

Download

Order description

FH-M6-20

d₂ ±0.4

8.2 mm

d₃

6.1 mm

Max. a

3.0 mm

Min. edge distance up to the hole centre

7.9 mm

Use

For sheet hardnesses up to HRB 80.

Information

For thin sheet applications with 0.5 mm use Types TFH (M3 to M5).

Tools

Identify order numbers of PEMSERTER® tools (anvils and punches): Tooling Selector
