Broaching standoffs for plastics
KFSE-3,6-6

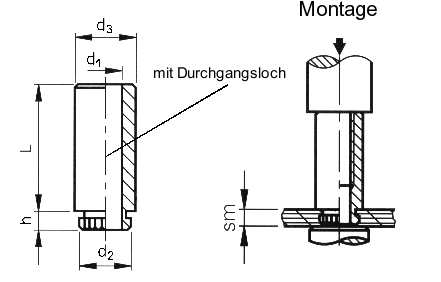

Type KFE (carbon steel), taped version available
Type KFSE (stainless steel)
Self-clinching broaching standoffs for spacing or stacking on printed circuit boards and other plastics. Available in different lengths and without threads.
Technical Specification
Through-hole d1 +0.10/-0.08
3.6 mm
Min. sm
1.53 mm
L ±0.13
6 mm
Hole-Ø in the plastic
+0.08
0
5.40 mm
Material
Passivated grade 18/8 stainless steel (AISI 300).
Use
Printed circuit boards and other plastics (also for aluminium casting and magnesium) up to HRB 70.
3D-Data available
Order description
KFSE-3,6-6
d2 ±0.08
5.87 mm
d3 ±0.13
7.14 mm
Max. h
1.53 mm
Min. edge distance up to the hole centre
5.5 mm
Thread length tmin.
6 mm
Note
Types KFE and KFSE are designed for unplated thru-hole applications. When used in plated thru-hole applications, a tolerance of +.005" - .001"/+0.13 mm -0.03 mm should be used.
Tools
Identify order numbers of PEMSERTER® tools (anvils and punches): Tooling Selector
Further information
KFSE 36 6_en
