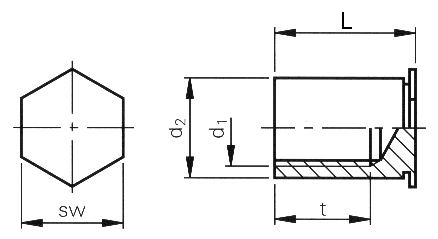

Blind self-clinching standoffs

Thread d₁

M3

Min. sm

1.0 mm

L
+0.05
-0.13

16 mm

Hole-Ø in the sheet
+0.08
  0

5.4 mm

Material

Case-hardened zinc-plated carbon steel, bright-finished aluminium on request.

Use

For sheet hardnesses up to HRB 80.

3D-Data available

Download

Order description

BSO-3,5M3-16

d₂
  0
-0.13

5.39 mm

d₃

5.6 mm

sw

6.4 mm

Depth of thread t_min.

6.5 mm

Min. edge distance up to the hole centre

6.8 mm

Note

For sheet applications > HRB 80, type BSO4 should be used.

Tools

Identify order numbers of PEMSERTER® tools (anvils and punches): Tooling Selector

Insertion machines

Further information
