High-precision locknuts
DRS 125x2
Type DRS - Radial locking system
Thread and supporting surfaces turned in one operation
Axial runout accuracy 0.01
Technical Specification
Type
turned

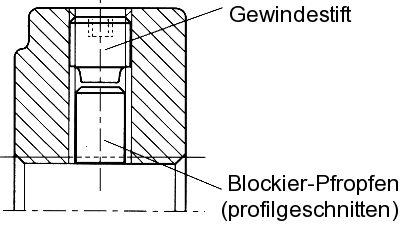

Locking system
radial set screw
Axial runout accuracy
0.01 mm
Thread d1 4H
M125x2
3D-Data available
Order description
DRS 125x2
d2
160 mm
h
24 mm
d3
148 mm
b
12 mm
t
5 mm
c
12 mm
m
M10
Weight g/part
1475
Material
Steel Rm 800 - 950 N/mm²Body black finishedBare and lubricated thread and bearing surface
DRS 125x2_en
