FASTEKS FILKO® - blind rivet nuts countersunk head 90° / knurled shank / open
M5-61 R SK ST
Materials:
- Steel
Surface protection: Galvanized with thick coating passivation (RoHS compliant) - Stainless steel A2
Brass, aluminum, special surface platings on request
Technical Specification
Thread
M5
Grip range K
4.0-6.0 mm
Mounting hole-Ø +0,1
7.0 mm
Material
SteelSurface protection: Galvanized with thick coating passivation (RoHS compliant)
3D-Data available
Order description
M5-61 R SK ST

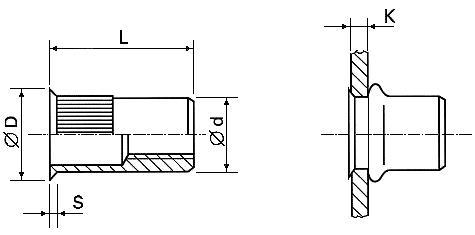

Ø d
7.0 mm
Ø D
10.0 mm
S
1.5 mm
L
15.0 mm
Hint
Countersinking of the drilled hole is necessary
M5 61 R SK ST_en
